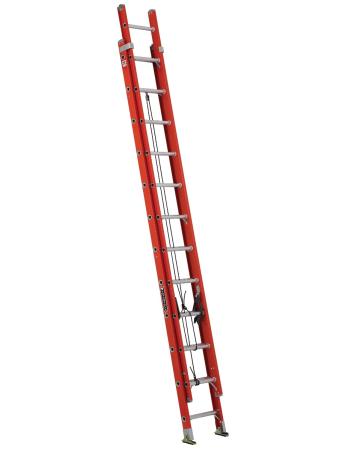

LOUISVILLE LADDER 24-FOOT FIBERGLASS EXTENSION LADDER, TYPE IA, 300-POUND LOAD CAPACITY, FE3224

SERIES FE3200
Duty Rating: Type IA
Load: 300

This Louisville 24 foot fiberglass extension ladder has a 300 pounds. load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented QuickLatch system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE3224 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

FEATURES

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • Patented Quicklatch Runglock System
  • Steel Swivel Safety Shoe With Metal Shield
  • Direct Rung-Rail Connection
  • Mar-Resistant Rail End Caps
  • Outside Slide Guides
  • D-Shaped Rungs

Where to Buy

Where to Buy

PRODUCT SPECIFICATIONS

Product

Extension Ladders

Duty Rating

Type IA

Number of Steps

24

Material

Fiberglass

Closed Volume (cu. ft.)

9.631

Closed Width (in)

17.812

Max. Extended Length (ft)

21

Inside Width Fly (in)

13.688

ANSI

Certified

SKU

FE3224

Load Capacity (lbs)

300

Rung Type

D-rung

Weight

51

Closed Height

149.5

Section Length (ft)

12

Rail Depth (in)

3.25

Outside Width Base (in)

17.063

Certified

OSHA

Style

Standard

Size

24

Step Depth

1.5

Maximum Standing Height (in)

17.25

Closed Depth

6.25

Total Length (ft)

24

Inside Width Base (in)

14.645

Outside Width Fly (in)

16.088
