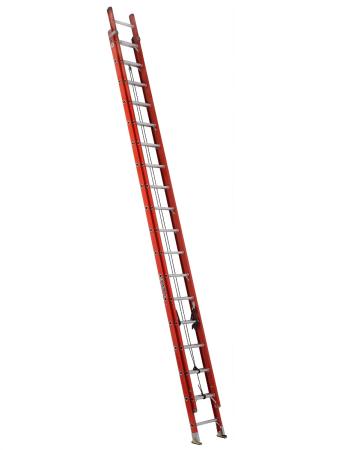

LOUISVILLE LADDER 36-FOOT FIBERGLASS EXTENSION LADDER, TYPE IA, 300-POUND LOAD CAPACITY, FE3236

SERIES FE3200
Duty Rating: Type IA
Load: 300

This Louisville 36 foot fiberglass extension ladder has a 300 pounds. load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented QuickLatch system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE3236 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

FEATURES

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • Patented Quicklatch Runglock System
  • Steel Swivel Safety Shoe With Metal Shield
  • Direct Rung-Rail Connection
  • Mar-Resistant Rail End Caps
  • Outside Slide Guides
  • D-Shaped Rungs

Where to Buy

Where to Buy

PRODUCT SPECIFICATIONS

Product

Extension Ladders

Duty Rating

Type IA

Number of Steps

36

Material

Fiberglass

Closed Volume (cu. ft.)

14.771

Closed Width (in)

18.437

Max. Extended Length (ft)

32

Inside Width Fly (in)

14.313

ANSI

Certified

SKU

FE3236

Load Capacity (lbs)

300

Rung Type

D-rung

Weight

79

Closed Height

221.5

Section Length (ft)

18

Rail Depth (in)

3.34375

Outside Width Base (in)

17.688

Certified

OSHA

Style

Standard

Size

36

Step Depth

1.5

Maximum Standing Height (in)

27.917

Closed Depth

6.25

Total Length (ft)

36

Inside Width Base (in)

15.27

Outside Width Fly (in)

16.713
