Louisville Ladder_AL3040MG-R10_Action
FR Door and Logo AL2540LG-R5_Feature1

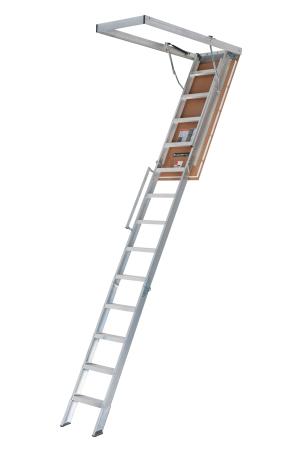

LOUISVILLE LADDER 22.5 X 54 FIRE RATED ALUMINUM ATTIC LADDER, 375-POUND LOAD CAPACITY, AL2240MG-R5FT

SERIES FIRE RATED ENERGY EFFICIENT
Duty Rating: IAA
Load: 375

This Louisville Fire Rated Everest Series aluminum attic ladder has a working load capability of 375lbs. This aluminum attic ladder fits ceiling heights of 7’8″ to 10’3″ celling heights and has a rough opening of 22.5″ X 54 “. The Fire Rated Everest AL2240MG-R5FT features a sturdy, yet lightweight design with pre-drilled holes for easier installation. The fire rated door is flame retardant for up to 30 minutes compliant with ASTM E-84. Achieve superior energy efficiency with the R5 insulated door and factory installed weather stripping. It features an easy to open door with gas piston system, adjustable shoes, slip resistant steps, and an aluminum handrail for a comfortable transition. The Louisville AL2240MG-R5FT Fire Rated Everest aluminum attic ladder meets or exceeds the safety standards set by ANS

FEATURES

  • Sturdy, yet lightweight design for easier installation
  • Pre-drilled holes for easier installation
  • Available in 22″ & 25″ wide openings
  • Fire rated door is flame retardant for up to 30 minutes compliant with ASTM E-84.
  • R5 insulated door for superior energy efficiency
  • Weather stripping that reduces energy loss
  • Easier to open and close door with gas piston system
  • Adjustable shoes – fit heights 7’8″ – 10’3″
  • Aluminum handrail for a comfortable transitio

Where to Buy

Where to Buy

PRODUCT SPECIFICATIONS

Product

Attic Ladders

Load Capacity (lbs)

375

Weight

70.5

Rough Opening (in)

22.5x 54

Approx. Cubes (ft)

11.6

Certified

ANSI

SKU

AL2240MG-R5FT

Ceiling Height Minimum (ft)

7'8"

Ceiling Height Maximum (ft)

10'3"

Rung Type

Standard

Landing Space (in)

78

Style

Everest, Fire Rated

Material

Aluminum

Project Width or Clearance (in)

87"

Rail Size (in)

0.75×3.375

Size

25
