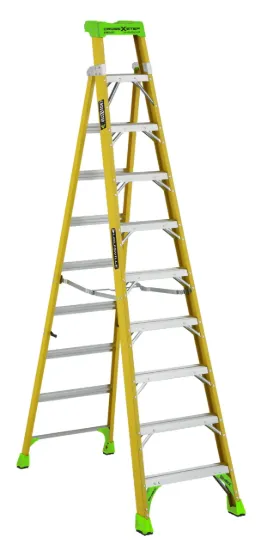

10-FOOT FIBERGLASS CROSS-STEP LADDER

FXS1410HD

Material Fiberglass
Size 10 ft
Max Reach* 14' 2"
Around electricity Safe
Load Capacity 375 lbs

The industry changing Step-to-Extension 2-in-1 Cross Step Ladder is better than ever! Its HiVis green top and shoes makes it easily identifiable to prevent fines and improve workplace safety.

SERIES FXS1400HD Duty Rating: Type IAA

The industry changing Step-to-Extension 2-in-1 Cross Step Ladder is better than ever! Its HiVis green top and shoes makes it easily identifiable to prevent fines and improve workplace safety. SUPERIOR SAFETY: This 10-Foot Cross-Step/Shelf Ladder is made of superior quality, non-conductive fiberglass VERSATILE: Converts from a step ladder into a shelf ladder for a 2 in 1 combination in order to get closer to the work area PATENTED PROTOP™ SYSTEM: V-shape ProTop™ allows the ladder to lean against walls, buildings and poles; and has plenty of features to improve performance when working electrical, construction, and residential jobs. It includes a magnet tray, hardware tray, drill and tool slots, and pipe or 2×4 holder. EQUIPPED WITH SHOX™ SYSTEM: Louisville Ladder exclusive SHOX™ system provides extra durability and resistance to abuse and accidental mishandling. STURDY AND STRONG: With its 375-Pound capacity, elegant design and smooth finish, you won’t find a more durable, reliable ladder. ABOVE AND BEYOND SAFETY STANDARDS: This ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

  • Converts from a step ladder into a shelf ladder for a 2 in 1 combination
  • V-shape ProTop™ allows the ladder to lean against walls buildings and poles
  • ProTop™ with multiple tool slots and magnet
  • Innovative lock latch to secure rear section
  • Step ladder angles allows you to get closer to the work area
  • Shox™ impact absorption system
  • Raptor Boot™ with slip-resistant non-marring bonded tread
  • Inside spreader braces
  • Double-rivet step construction
  • Double heavy duty reinforcements
Where to Buy
Other Sizes 4 ft 6 ft 8 ft 12 ft 10 ft

Top Width Closed (in)13.1875
Open Volume (cu. ft.)4.75
Number of Steps10
Maximum Standing Height (in)91
Open Volume (cu. m.)3.29
OSHACertified
Rung TypeStandard Step
Open Width (in)60
Size10
Open Height (in)114.5
Closed Height122
Weight39
Maximum Reach (in)170
CertifiedANSI
Load Capacity375
Closed Depth7
Closed Width (in)30
Open Depth (in)29 1/4
Duty RatingType IAA
Closed Volume (cu. ft.)3.2168
StyleCross-Step
Step Depth3
MaterialFiberglass
Max Reach14' 2"
Safe Around ElectricityYes
