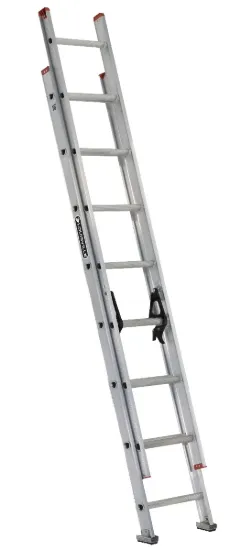

16-FOOT ALUMINUM EXTENSION LADDER

L-2324-16

Material Aluminum

Size 16 ft

Max Reach* 15' 11"

Around electricity Not safe

Load Capacity 200 lbs

This Louisville 16 foot aluminum extension ladder has a 200 pound load capacity, rated ANSI Type III.

SERIES L-2324 Duty Rating: Type III

This Louisville 16 foot aluminum extension ladder has a 200 pound load capacity, rated ANSI Type III. This ladder is equipped with D-shape rungs fully serrated for a slip resistant surface, aluminum runglock, mar resistant rail end caps, and slip-resistant rubber feet. The Louisville L-2324-16 aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

D-Shaped Rungs
Mar-Resistant Rail End Caps
Slip-Resistant Rubber Feet
Aluminum Runglock
Rope And Pulley Included

Other Sizes 16 ft 20 ft 24 ft

Number of Steps	16
Outside Width Fly (in)	15.188
Maximum Standing Height (in)	9.5
Inside Width Fly (in)	13.313
ANSI	Certified
Rung Type	D-rung
Size	16
Outside Width Base (in)	15.875
Total Length (ft)	16
Closed Height	97
Weight	21
Certified	OSHA
Load Capacity	200
Closed Depth	5.75
Closed Width (in)	17.125
Rail Depth (in)	2.75
Duty Rating	Type III
Inside Width Base (in)	14
Section Length (ft)	8
Closed Volume (cu. ft.)	5.527
Style	Standard
Max. Extended Length (ft)	13
Step Depth	1.5
Material	Aluminum
Max Reach	15' 11"
Safe Around Electricity	No
Atributos de producto
Product	Extension Ladders
