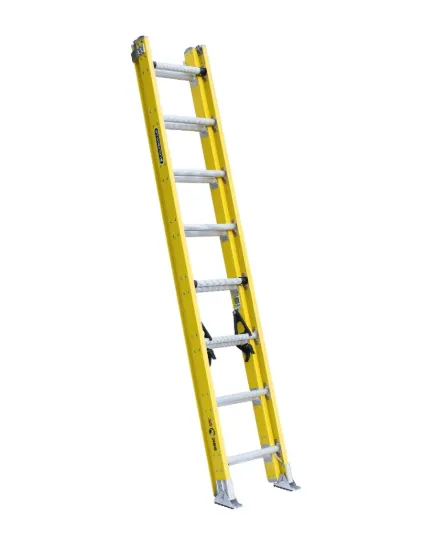

16-FOOT FIBERGLASS EXTENSION LADDER

FE4216HD

Material Fiberglass
Size 16 ft
Max Reach* 15' 11"
Around electricity Safe
Load Capacity 375 lbs

This Louisville 16 foot heavy duty fiberglass extension ladder has a 375lb load capacity, rated ANSI Type IAA.

SERIES FE4200HD Duty Rating: Type IAA

This Louisville 16 foot heavy duty fiberglass extension ladder has a 375lb load capacity, rated ANSI Type IAA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, aluminum rung connector plates, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville FE4216HD fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • Aluminum Swivel Safety Shoes With Full Metal Boot
  • Patented Quicklatch Runglock System
  • Mar-Resistant Rail End Caps
  • Aluminum Rung Connector Plates
  • Outside Slide Guides
  • D-Shaped Rungs
Where to Buy

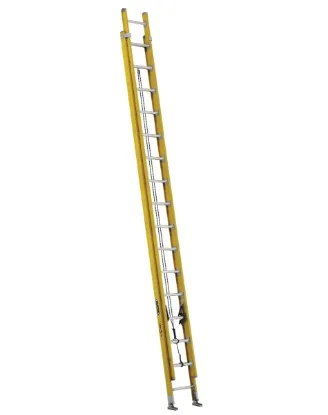

Other Sizes 20 ft 24 ft 28 ft 32 ft

Number of Steps16
Outside Width Fly (in)16.063
Maximum Standing Height (in)17’
Inside Width Fly (in)13.688
ANSICertified
Rung TypeD-rung
Size16
Outside Width Base (in)17.375
Total Length (ft)16
Closed Height102
Weight42
CertifiedOSHA
Load Capacity375
Closed Depth7
Closed Width (in)18.5
Rail Depth (in)3.25
Duty RatingType IAA
Inside Width Base (in)15
Section Length (ft)8
Closed Volume (cu. ft.)7.644
StyleStandard
Max. Extended Length (ft)13
Step Depth1.5
MaterialFiberglass
Max Reach15' 11"
Safe Around ElectricityYes
Atributos de producto
ProductExtension Ladders

Replacement safety and rating labels for the FE4216HD.
