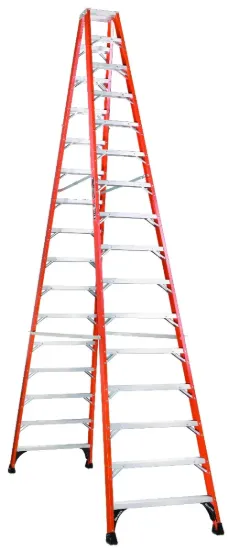

16-FOOT FIBERGLASS STEP LADDER

FM1416HD

Material Fiberglass

Size 16 ft

Max Reach* 19' 11"

Around electricity Safe

Load Capacity 375 lbs

This Louisville 16 foot non-conductive fiberglass industrial twin front step ladder has a load capacity of 375lbs, rated ANSI Type IAA.

SERIES FM1400HD Duty Rating: Type IAA

This Louisville 16 foot non-conductive fiberglass industrial twin front step ladder has a load capacity of 375lbs, rated ANSI Type IAA. This ladder is equipped with Raptor Boot™ with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, SHOX™ impact absorption system, heavy-gauge steel hinges, heavy-duty gusset bracing, inside spreader braces, and riveted step construction. Twin front step ladders allow two users to work on the same ladder simultaneously to easily accomplish tasks that would be more difficult for a single person. The Louisville FM1416HD twin front step ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Shox™ Impact Absorption System
Raptor Boot™ With Slip-resistant Non-Marring Bonded Tread
Heavy Gauge Steel Hinges
Inside Spreader Braces
Heavy-Duty Gusset Bracing
Riveted Step Construction

Other Sizes 4 ft 6 ft 8 ft 10 ft 12 ft 14 ft

Top Width Closed (in)	12.8125
Open Volume (cu. ft.)	21.53
Number of Steps	15
Maximum Standing Height (in)	160
Open Volume (cu. m.)	7.77
ANSI	Certified
Rung Type	Standard Step
Open Width (in)	35.875
Size	16
Open Height (in)	137.127
Closed Height	181.7
Weight	100
Maximum Reach (in)	239
Certified	OSHA
Load Capacity	375
Closed Depth	8
Closed Width (in)	35.9
Open Depth (in)	96.344
Duty Rating	Type IAA
Closed Volume (cu. ft.)	31.728
Style	Twin Front
Step Depth	3
Material	Fiberglass
Max Reach	19' 11"
Safe Around Electricity	Yes
Atributos de producto
Product	Step Ladders
