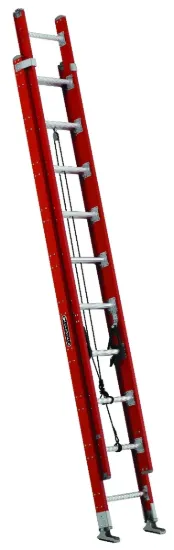

20-FOOT FIBERGLASS EXTENSION LADDER

FE7220

Material Fiberglass
Size 20 ft
Max Reach* 19' 10"
Around electricity Safe
Load Capacity 300 lbs

This Louisville 20 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA.

SERIES FE7200 Duty Rating: Type IA

This Louisville 20 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features aluminum rung connector plates, outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville FE7220 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • Aluminum Rung Connector Plates
  • Aluminum Swivel Safety Shoes With Full Metal Boot
  • Patented Quicklatch Runglock System
  • D-Shaped Rungs
  • Outside Slide Guides
  • Mar-Resistant Rail End Caps
Where to Buy
Other Sizes 16 ft 24 ft 28 ft 32 ft 36 ft 40 ft

Number of Steps20
Outside Width Fly (in)16.063
Maximum Standing Height (in)17’
Inside Width Fly (in)13.688
ANSICertified
Rung TypeD-rung
Size20
Outside Width Base (in)17.375
Total Length (ft)20
Closed Height124.75
Weight46
CertifiedOSHA
Load Capacity300
Closed Depth6.5
Closed Width (in)18.5
Rail Depth (in)3.25
Duty RatingType IA
Inside Width Base (in)15
Section Length (ft)10
Closed Volume (cu. ft.)8.681
StyleStandard
Max. Extended Length (ft)17
Step Depth1.5
MaterialFiberglass
Max Reach19' 10"
Safe Around ElectricityYes
