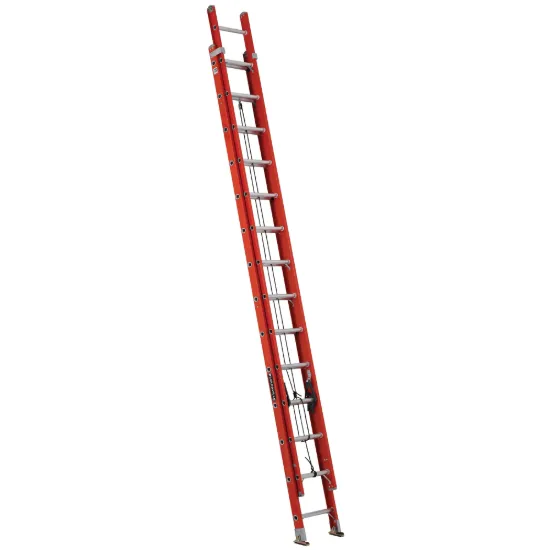

28-FOOT FIBERGLASS EXTENSION LADDER

FE3228

Material Fiberglass

Size 28 ft

Max Reach* 27' 7"

Around electricity Safe

Load Capacity 300 lbs

This Louisville 28 foot fiberglass extension ladder has a 300 pounds. load capacity, rated ANSI Type IA.

SERIES FE3200 Duty Rating: Type IA

This Louisville 28 foot fiberglass extension ladder has a 300 pounds. load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented QuickLatch system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE3228 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

MAXLOCK™ rung lock system features a custom-engineered, patented molecular polymer design for exceptional strength, durability, and lightweight performance.
Locked in Position Engage the QuickLatch™ to latch the sections together for secure climbing and transport
Versatility & Stability Steel swivel safety shoe provides secure footing in the regular position or the spiked position
Surface Protection Mar- resistant rail end caps protect both the work surface and the ladder from damage
Fatigue Busting Rungs D-shaped rungs provide a flat spot for your feet reducing pain
Smooth Extension Outside slide guides provides seamless extension operation
Rigidity Direct rung-to-rail connection enhances ladder stability and long-term durability.

Other Sizes 16 ft 20 ft 24 ft 32 ft 36 ft 40 ft

Number of Steps	28
Outside Width Fly (in)	16.088
Maximum Standing Height (in)	21.166
Inside Width Fly (in)	13.688
ANSI	Certified
Rung Type	D-rung
Size	28
Outside Width Base (in)	17.063
Total Length (ft)	28
Closed Height	173.5
Weight	58
Certified	OSHA
Load Capacity	300
Closed Depth	6.25
Closed Width (in)	17.812
Rail Depth (in)	3.25
Duty Rating	Type IA
Inside Width Base (in)	14.645
Section Length (ft)	14
Closed Volume (cu. ft.)	11.178
Style	Standard
Max. Extended Length (ft)	25
Step Depth	1.5
Material	Fiberglass
Max Reach	27' 7"
Safe Around Electricity	Yes
