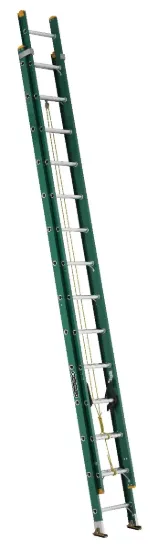

28-FOOT FIBERGLASS EXTENSION LADDER

FE0628

Material Fiberglass
Size 28 ft
Max Reach* 27' 7"
Around electricity Safe
Load Capacity 225 lbs

This Louisville 28 foot fiberglass extension ladder has a 225lb load capacity, rated ANSI Type II.

SERIES FE0600 Duty Rating: Type II

This Louisville 28 foot fiberglass extension ladder has a 225lb load capacity, rated ANSI Type II. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE0628 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • D-Shaped Rungs
  • Patented Quicklatch Runglock System
  • Steel Swivel Safety Shoes With Metal Shield
  • Mar-Resistant Rail End Caps
  • Outside Slide Guides
  • Direct Rung-Rail Connection
Where to Buy

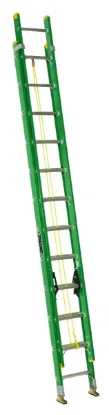

Other Sizes 20 ft 24 ft

Number of Steps28
Outside Width Fly (in)16.063
Maximum Standing Height (in)25’
Inside Width Fly (in)13.688
ANSICertified
Rung TypeD-rung
Size28
Outside Width Base (in)17.063
Total Length (ft)28
Closed Height173.125
Weight53
CertifiedOSHA
Load Capacity225
Closed Depth6.25
Closed Width (in)17.812
Rail Depth (in)3.25
Duty RatingType II
Inside Width Base (in)14.688
Section Length (ft)14
Closed Volume (cu. ft.)11.153
StyleStandard
Max. Extended Length (ft)25
Step Depth1.5
MaterialFiberglass
Max Reach27' 7"
Safe Around ElectricityYes
Atributos de producto
ProductExtension Ladders

Replacement safety and rating labels for the FE0628.
