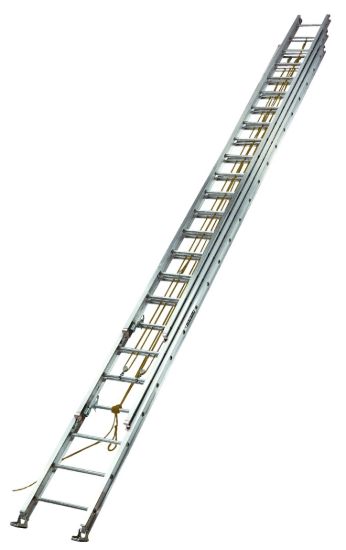

60-FOOT ALUMINUM EXTENSION LADDER

AE1660

Material Aluminum

Size 60 ft

Max Reach* 49' 10"

Around electricity Not safe

Load Capacity 250 lbs

This Louisville 60 foot aluminum extension ladder has a 250lbs load capacity, rated ANSI Type I.

SERIES AE1660 Duty Rating: Type I

This Louisville 60 foot aluminum extension ladder has a 250lbs load capacity, rated ANSI Type I. This 3 section ladder features full I-beam construction for a more stable connection and to prevent twisting, round-shaped rungs, double rope and pulley, aluminum cast rail end caps, and swivel safety shoes to be used with the tread down or in spike position. The Louisville AE1660 aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Round Rungs
Aluminum Cast Rail End Caps
Full I-Beam
Swivel Safety Shoes
Double Rope & Pulley Included

Number of Steps	60
Outside Width Fly (in)	16.125
Maximum Standing Height (in)	48â€™
Inside Width Fly (in)	12.6
ANSI	Certified
Rung Type	Round rung
Size	60
Outside Width Base (in)	21.5
Total Length (ft)	60
Closed Height	292.25
Weight	169
Certified	OSHA
Load Capacity	250
Closed Depth	9
Closed Width (in)	22.25
Rail Depth (in)	4
Duty Rating	Type I
Inside Width Base (in)	18
Closed Volume (cu. ft.)	33.868
Style	Standard
Max. Extended Length (ft)	48
Step Depth	1.5
Material	Aluminum
Max Reach	49' 10"
Safe Around Electricity	No
Atributos de producto
Product	Extension Ladders
