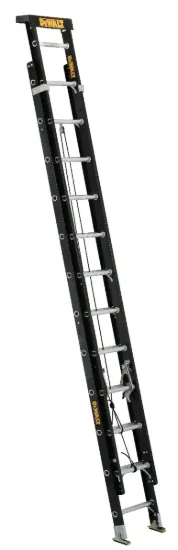

16-FOOT FIBERGLASS MULTI-SECTION EXTENSION LADDER

DXL3020-16PT

Material Fiberglass

Size 16 ft

Max Reach* 15' 11"

Around electricity Safe

Load Capacity 300 lbs

This 16-foot fiberglass DEWALT extension ladder has a 300-pound load capacity, rated ANSI Type IA.

SERIES DXL3020 Duty Rating: Type IA

This 16-foot fiberglass DEWALT extension ladder has a 300-pound load capacity, rated ANSI Type IA. This ladder includes an advanced RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features outside slide guides, a non-marring durable V-shaped top with multiple tool slots and a slip-resistant rubber tread, D-shaped rungs fully serrated for a slip-resistant surface, and full heavy-duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. This DeWalt DXL3020-16PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Durable V-Shaped Top With Tool Slots
Top Provides Stability On Corners And Irregular Surfaces
Top Has Slip-Resistant Rubber Tread
Outside Slide Guides
Dual Action Steel Slip-Resistant Shoes

Other Sizes 20 ft 24 ft 28 ft 32 ft 36 ft 40 ft

Open Volume (cu. ft.)	12.21
Number of Steps	16
Outside Width Fly (in)	16
Maximum Standing Height (in)	9.166
Open Volume (cu. m.)	0.35
Inside Width Fly (in)	13.625
ANSI	Certified
Rung Type	D-rung
Open Width (in)	18.5
Size	16
Open Height (in)	162.88
Outside Width Base (in)	17
Total Length (ft)	16
Closed Height	103.5
Weight	34
Certified	OSHA
Load Capacity	300
Closed Depth	7
Closed Width (in)	18.5
Rail Depth (in)	3
Open Depth (in)	7
Duty Rating	Type IA
Inside Width Base (in)	14.625
Section Length (ft)	8
Closed Volume (cu. ft.)	7.757
Style	Standard
Max. Extended Length (ft)	13
Step Depth	1.5
Material	Fiberglass
Max Reach	15' 11"
Safe Around Electricity	Yes
Atributos de producto
Product	Extension Ladders
