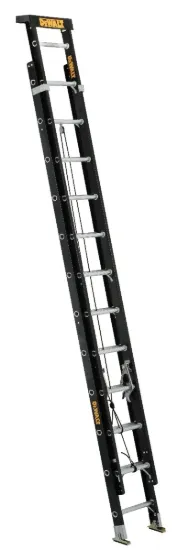

20-FOOT FIBERGLASS MULTI-SECTION EXTENSION LADDER

DXL3020-20PT

Material Fiberglass

Size 20 ft

Max Reach* 19' 10"

Around electricity Safe

Load Capacity 300 lbs

This 20-foot fiberglass DEWALT extension ladder has a 300-pound load capacity, rated ANSI Type IA.

SERIES DXL3020 Duty Rating: Type IA

This 20-foot fiberglass DEWALT extension ladder has a 300-pound load capacity, rated ANSI Type IA. This ladder includes an advanced RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features outside slide guides, a non-marring durable V-shaped top with multiple tool slots and a slip-resistant rubber tread, D-shaped rungs fully serrated for a slip-resistant surface, and full heavy-duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. This DeWalt DXL3020-20PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Durable V-Shaped Top With Tool Slots
Top Provides Stability On Corners And Irregular Surfaces
Top Has Slip-Resistant Rubber Tread
Outside Slide Guides
Dual Action Steel Slip-Resistant Shoes

Other Sizes 16 ft 24 ft 28 ft 32 ft 36 ft 40 ft

Open Volume (cu. ft.)	15.8
Number of Steps	20
Outside Width Fly (in)	16
Maximum Standing Height (in)	13.083
Open Volume (cu. m.)	0.45
Inside Width Fly (in)	13.625
ANSI	Certified
Rung Type	D-rung
Open Width (in)	18.5
Size	20
Open Height (in)	210.88
Outside Width Base (in)	17
Total Length (ft)	20
Closed Height	127.5
Weight	47
Certified	OSHA
Load Capacity	300
Closed Depth	7
Closed Width (in)	18.5
Rail Depth (in)	3.25
Open Depth (in)	7
Duty Rating	Type IA
Inside Width Base (in)	14.625
Section Length (ft)	10
Closed Volume (cu. ft.)	9.555
Style	Standard
Max. Extended Length (ft)	17
Step Depth	1.5
Material	Fiberglass
Max Reach	19' 10"
Safe Around Electricity	Yes
Atributos de producto
Product	Extension Ladders
