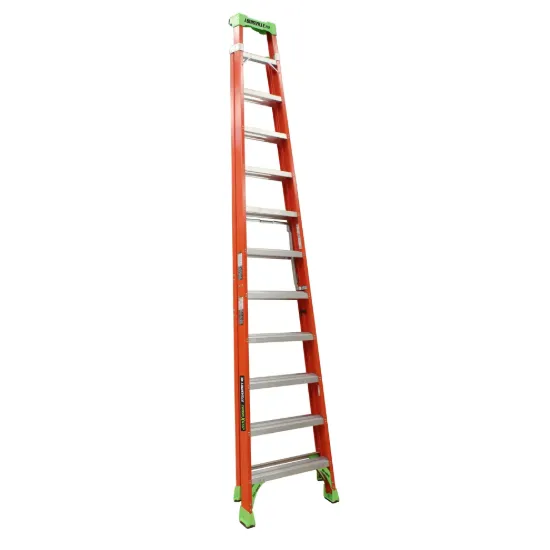

12-FOOT FIBERGLASS CROSS STEP LADDER

FXS1512

Material Fiberglass

Size 12 ft

Max Reach* 16' 1"

Around electricity Safe

Load Capacity 300 lbs

The industry changing Step-to-Extension 2-in-1 Cross Step Ladder is better than ever! Its HiVis green top and shoes makes it easily identifiable to prevent fines and improve workplace safety.

SERIES FXS1500 Duty Rating: Type IA

The industry changing Step-to-Extension 2-in-1 Cross Step Ladder is better than ever! Its HiVis green top and shoes makes it easily identifiable to prevent fines and improve workplace safety. SUPERIOR SAFETY: This 12-Foot Cross-Step/Shelf Ladder is made of superior quality, non-conductive fiberglass VERSATILE: Converts from a step ladder into a shelf ladder for a 2 in 1 combination in order to get closer to the work area PATENTED PROTOP™ SYSTEM: V-shape ProTop™ allows the ladder to lean against walls, buildings and poles; and has plenty of features to improve performance when working electrical, construction, and residential jobs. It includes a magnet tray, hardware tray, drill and tool slots, and pipe or 2×4 holder. EQUIPPED WITH SHOX™ SYSTEM: Louisville Ladder exclusive SHOX™ system provides extra durability and resistance to abuse and accidental mishandling. STURDY AND STRONG: With its 300-Pound capacity, elegant design and smooth finish, you won’t find a more durable, reliable ladder. ABOVE AND BEYOND SAFETY STANDARDS: This ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

2 Ladders in 1 Converts from a step ladder to a shelf ladder for added versatility in one convenient design.
Get Closer V-shaped ProTop™ allows the ladder to lean securely against walls, corners, buildings, and poles.
Enhanced Longevity With the heavy duty RaptorBoot™ protecting the fiberglass from wear and tear
Security Locking latch to secure rear section
Durability SHOX™ - advanced impact absorption protects fiberglass rails against damage
Built in Protection Internal spreader braces help prevent damage during transport

Other Sizes 4 ft 6 ft 8 ft 10 ft 12 ft

Top Width Closed (in)	13.1875
Open Volume (cu. ft.)	5.69
Number of Steps	12
Maximum Standing Height (in)	114
Open Volume (cu. m.)	5.18
OSHA	Certified
Rung Type	Standard Step
Open Width (in)	71
Size	12
Open Height (in)	137.5
Closed Height	146
Weight	48
Maximum Reach (in)	193
Certified	ANSI
Load Capacity	300
Closed Depth	7
Closed Width (in)	33
Open Depth (in)	32.375
Duty Rating	Type IA
Closed Volume (cu. ft.)	3.8496
Style	Cross-Step
Step Depth	3
Material	Fiberglass
Max Reach	16' 1"
Safe Around Electricity	Yes
Atributos de producto
Product	Step Ladders
