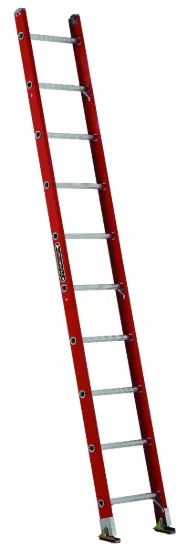

12-FOOT FIBERGLASS STRAIGHT LADDER

FE3112

Material Fiberglass

Size 12 ft

Max Reach* 14' 12"

Around electricity Safe

Load Capacity 300 lbs

This Louisville 12 foot fiberglass single ladder has a load capacity of 300 pounds, rated ANSI Type IA.

SERIES FE3100 Duty Rating: Type IA

This Louisville 12 foot fiberglass single ladder has a load capacity of 300 pounds, rated ANSI Type IA. This ladder features direct rung – rail connection for rigidity and stability, D-shaped rungs, mar-resistant rail end caps, and swivel safety shoes with metal shield. The Louisville FE3112 straight ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Steel Swivel Safety Shoe With Metal Shield
Mar-Resistant Rail End Caps
Direct Rung-Rail Connection
D-Shaped Rungs

Other Sizes 8 ft 10 ft 16 ft

Number of Steps	12
Maximum Standing Height (in)	8.5
ANSI	Certified
Rung Type	D-rung
Size	12
Outside Width Base (in)	17.063
Total Length (ft)	12
Closed Height	148.5
Weight	25
Certified	OSHA
Load Capacity	300
Closed Depth	4.191
Closed Width (in)	17.812
Rail Depth (in)	3.25
Duty Rating	Type IA
Inside Width Base (in)	14.645
Section Length (ft)	12
Closed Volume (cu. ft.)	6.415
Style	Single
Max. Extended Length (ft)	12
Step Depth	1.5
Material	Fiberglass
Max Reach	14' 12"
Safe Around Electricity	Yes
Atributos de producto
Product	Extension Ladders
