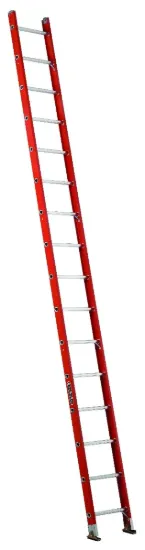

16-FOOT FIBERGLASS STRAIGHT LADDER

FE3116

Material Fiberglass

Size 16 ft

Max Reach* 18' 10"

Around electricity Safe

Load Capacity 300 lbs

This Louisville 16 foot fiberglass single ladder has a load capacity of 300 pounds, rated ANSI Type IA.

SERIES FE3100 Duty Rating: Type IA

This Louisville 16 foot fiberglass single ladder has a load capacity of 300 pounds, rated ANSI Type IA. This ladder features direct rung – rail connection for rigidity and stability, D-shaped rungs, mar-resistant rail end caps, and swivel safety shoes with metal shield. The Louisville FE3116 straight ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Steel Swivel Safety Shoe With Metal Shield
Mar-Resistant Rail End Caps
Direct Rung-Rail Connection
D-Shaped Rungs

Other Sizes 8 ft 10 ft 12 ft

Number of Steps	16
Maximum Standing Height (in)	12.5
ANSI	Certified
Rung Type	D-rung
Size	16
Outside Width Base (in)	17.688
Total Length (ft)	16
Closed Height	196.5
Weight	36
Certified	OSHA
Load Capacity	300
Closed Depth	4.191
Closed Width (in)	18.437
Rail Depth (in)	3.3125
Duty Rating	Type IA
Inside Width Base (in)	15.27
Section Length (ft)	16
Closed Volume (cu. ft.)	8.787
Style	Single
Max. Extended Length (ft)	16
Step Depth	1.5
Material	Fiberglass
Max Reach	18' 10"
Safe Around Electricity	Yes
Atributos de producto
Product	Extension Ladders
