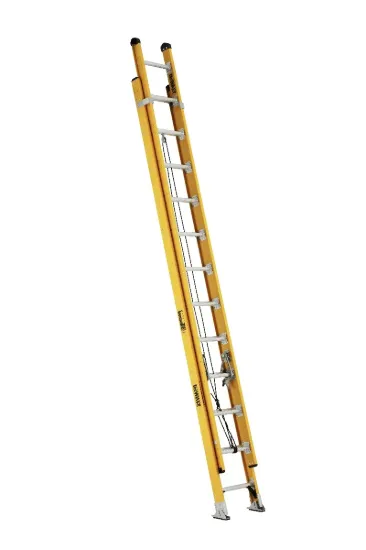

16-FOOT FIBERGLASS MULTI-SECTION EXTENSION LADDER

DXL3420-16PG

Material Fiberglass

Size 16 ft

Max Reach* 15' 11"

Around electricity Safe

Load Capacity 375 lbs

This 16 foot fiberglass DeWalt extension ladder has a 375 pound load capacity, rated ANSI Type IAA.

SERIES DXL3420 Duty Rating: Type IAA

This 16 foot fiberglass DeWalt extension ladder has a 375 pound load capacity, rated ANSI Type IAA. This ladder includes an advanced RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features outside slide guides, a non-marring heavy duty aluminum hand grips, D-shaped rungs fully serrated for a slip resistant surface, independently riveted rungs, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. This DeWalt DXL3420-16PG fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Independently Riveted Rungs For strength And Durability
Dual-Action Wrap Around Aluminum Slip-Resistant Shoes
Our MAXLOCK is the strongest toughest lightest rung lock ever made

Other Sizes 20 ft 24 ft 28 ft 32 ft

Open Volume (cu. ft.)	13.01
Number of Steps	16
Outside Width Fly (in)	15.5
Maximum Standing Height (in)	9.166
Open Volume (cu. m.)	0.37
Inside Width Fly (in)	13.625
ANSI	Certified
Rung Type	D-rung
Open Width (in)	19.5
Size	16
Open Height (in)	164.75
Outside Width Base (in)	17.375
Total Length (ft)	16
Closed Height	104.38
Weight	44
Certified	OSHA
Load Capacity	375
Closed Depth	7
Closed Width (in)	19.5
Rail Depth (in)	2.875
Open Depth (in)	7
Duty Rating	Type IAA
Inside Width Base (in)	15.5
Section Length (ft)	8
Closed Volume (cu. ft.)	8.245
Style	Standard
Max. Extended Length (ft)	13
Step Depth	1.5
Material	Fiberglass
Max Reach	15' 11"
Safe Around Electricity	Yes
Atributos de producto
Product	Extension Ladders
