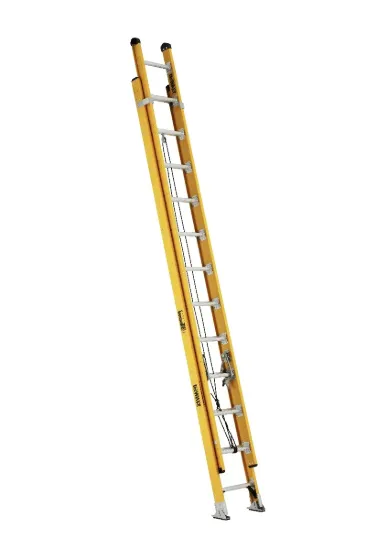

28-FOOT FIBERGLASS MULTI-SECTION EXTENSION LADDER

DXL3420-28PG

Material Fiberglass

Size 28 ft

Max Reach* 27' 7"

Around electricity Safe

Load Capacity 375 lbs

This 28 foot fiberglass DeWalt extension ladder has a 375 pound load capacity, rated ANSI Type IAA.

SERIES DXL3420 Duty Rating: Type IAA

This 28 foot fiberglass DeWalt extension ladder has a 375 pound load capacity, rated ANSI Type IAA. This ladder includes an advanced RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features outside slide guides, a non-marring heavy duty aluminum hand grips, D-shaped rungs fully serrated for a slip resistant surface, independently riveted rungs, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. This DeWalt DXL3420-28PG fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Independently Riveted Rungs For strength And Durability
Aluminum Rung Locks With Safety Latch
Dual-Action Wrap Around Aluminum Slip-Resistant Shoes

Other Sizes 16 ft 20 ft 24 ft 32 ft

Open Volume (cu. ft.)	25.66
Number of Steps	28
Outside Width Fly (in)	15.5
Maximum Standing Height (in)	20.833
Open Volume (cu. m.)	0.73
Inside Width Fly (in)	13.625
ANSI	Certified
Rung Type	D-rung
Open Width (in)	19.5
Size	28
Open Height (in)	308.37
Outside Width Base (in)	17.375
Total Length (ft)	28
Closed Height	176
Weight	70
Certified	OSHA
Load Capacity	375
Closed Depth	7.375
Closed Width (in)	19.5
Rail Depth (in)	3
Open Depth (in)	7.375
Duty Rating	Type IAA
Inside Width Base (in)	15.5
Section Length (ft)	14
Closed Volume (cu. ft.)	14.648
Style	Standard
Max. Extended Length (ft)	25
Step Depth	1.5
Material	Fiberglass
Max Reach	27' 7"
Safe Around Electricity	Yes
Atributos de producto
Product	Extension Ladders
