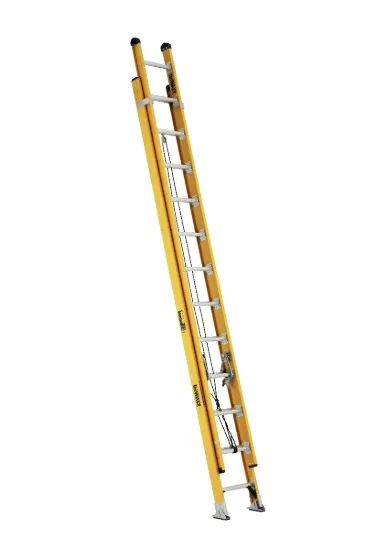

20-FOOT FIBERGLASS MULTI-SECTION EXTENSION LADDER

DXL3420-20PG

Material Fiberglass

Size 20 ft

Max Reach* 19' 10"

Around electricity Safe

Load Capacity 375 lbs

This 20 foot fiberglass DeWalt extension ladder has a 375 pound load capacity, rated ANSI Type IAA.

SERIES DXL3420 Duty Rating: Type IAA

This 20 foot fiberglass DeWalt extension ladder has a 375 pound load capacity, rated ANSI Type IAA. This ladder includes an advanced RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder features outside slide guides, a non-marring heavy duty aluminum hand grips, D-shaped rungs fully serrated for a slip resistant surface, independently riveted rungs, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. This DeWalt DXL3420-20PG fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Independently Riveted Rungs For strength And Durability
Dual-Action Wrap Around Aluminum Slip-Resistant Shoes

Other Sizes 16 ft 24 ft 28 ft 32 ft

Open Volume (cu. ft.)	16.8
Number of Steps	20
Outside Width Fly (in)	15.5
Maximum Standing Height (in)	13.083
Open Volume (cu. m.)	0.48
Inside Width Fly (in)	13.625
ANSI	Certified
Rung Type	D-rung
Open Width (in)	19.5
Size	20
Open Height (in)	212.63
Outside Width Base (in)	17.375
Total Length (ft)	20
Closed Height	128.25
Weight	53
Certified	OSHA
Load Capacity	375
Closed Depth	7
Closed Width (in)	19.5
Rail Depth (in)	2.875
Open Depth (in)	7
Duty Rating	Type IAA
Inside Width Base (in)	15.5
Section Length (ft)	10
Closed Volume (cu. ft.)	10.131
Style	Standard
Max. Extended Length (ft)	17
Step Depth	1.5
Material	Fiberglass
Max Reach	19' 10"
Safe Around Electricity	Yes
Atributos de producto
Product	Extension Ladders
