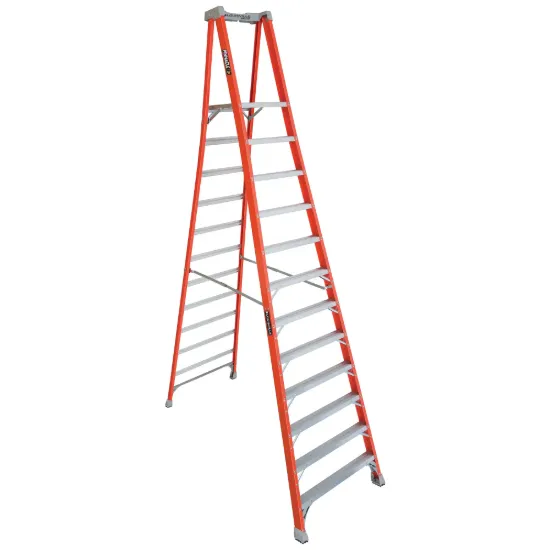

12-FOOT FIBERGLASS PINNACLE PRO PLATFORM LADDER

FXP1712

Material Fiberglass
Size 12 ft
Max Reach* 18' 0"
Around electricity Safe
Load Capacity 300 lbs

This Louisville 12 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA.

SERIES FXP1700 Duty Rating: Type IA

This Louisville 12 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 30″ extended handrail (perfect tool belt height) and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop™ with multiple tool slots and magnet, SHOX™ impact absorption system, Raptor Boot™ with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1712 Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

  • Practical Design Keep your tools close and your hands free with the ProTop™
  • Work Comfortably On the 30% larger platform
  • Increased Efficiency Work facing multiple directions
  • Tool Belt Height Handrail 30 inches tall putting every tool within reach
  • Durability SHOX™ - advanced impact absorption protects fiberglass rails against damage
  • Enhanced Longevity With the heavy duty RaptorBoot™ protecting the fiberglass from wear and tear
  • Stability Wide back braces provide ridged support
  • Reinforced Step Construction Double rivet design adds long-lasting durability to steps
Where to Buy
Other Sizes 2 ft 3 ft 4 ft 6 ft 8 ft 10 ft

Top Width Closed (in)18.4375
Open Volume (cu. ft.)28.81
Number of Steps12
Maximum Standing Height (in)11' 5"
Open Volume (cu. m.)9.28
OSHACertified
Rung TypeStandard Step
Open Width (in)36.75
Size12
Open Height (in)167.5
Closed Height176
Weight69
Maximum Reach (in)193
CertifiedANSI
Platform Front Width (in)14.5
Load Capacity300
Platform Rear Width (in)14.5
Closed Depth10
Closed Width (in)36.8
Open Depth (in)92
Duty RatingType IA
Closed Volume (cu. ft.)38.36631944
StylePinnacle Pro Platform
Platform Height (in)1.218
Step Depth3
MaterialFiberglass
Platform Depth (in)17.625
Max Reach18' 0"
Safe Around ElectricityYes
