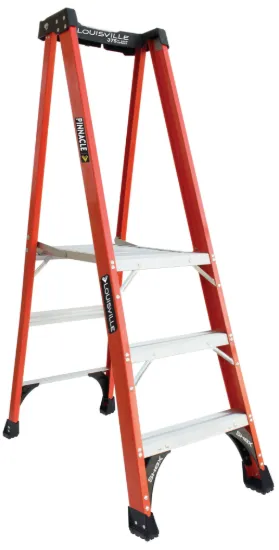

3-FOOT FIBERGLASS PINNACLE PRO PLATFORM LADDER

FXP1803HD

Material Fiberglass

Size 3 ft

Max Reach* 9' 5"

Around electricity Safe

Load Capacity 375 lbs

This Louisville 3 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA.

SERIES FXP1800HD Duty Rating: Type IAA

This Louisville 3 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36″ extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop™ with multiple tool slots and magnet, SHOX™ impact absorption system, Raptor Boot™ with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1803HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

36″ Tall Extended Handrail From Top To Platform
50% Larger Platform Area For Added Comfort And Safety
ProTop™ With Multiple Tool Slots And Magnet
Slip-resistant Raptor Boot™
Shox™ Impact Absorption System
Double-Rivet Step Construction
Wide Back Braces

Other Sizes 2 ft 3 ft 4 ft 6 ft 8 ft 10 ft 12 ft

Top Width Closed (in)	18.4375
Open Volume (cu. ft.)	9.28
Number of Steps	3
Maximum Standing Height (in)	2â€™ 10â€
Open Volume (cu. m.)	1.1
OSHA	Certified
Rung Type	Standard Step
Open Width (in)	23.125
Size	3
Open Height (in)	69.125
Closed Height	75.3
Weight	25
Certified	ANSI
Platform Front Width (in)	14.5
Load Capacity	375
Platform Rear Width (in)	14.5
Closed Depth	10
Closed Width (in)	23.1
Open Depth (in)	42
Duty Rating	Type IAA
Closed Volume (cu. ft.)	10.32210739
Style	Pinnacle Pro Platform
Platform Height (in)	1.25
Step Depth	3
Material	Fiberglass
Platform Depth (in)	21.25
Max Reach	9' 5"
Safe Around Electricity	Yes
Atributos de producto
Product	Step Ladders
