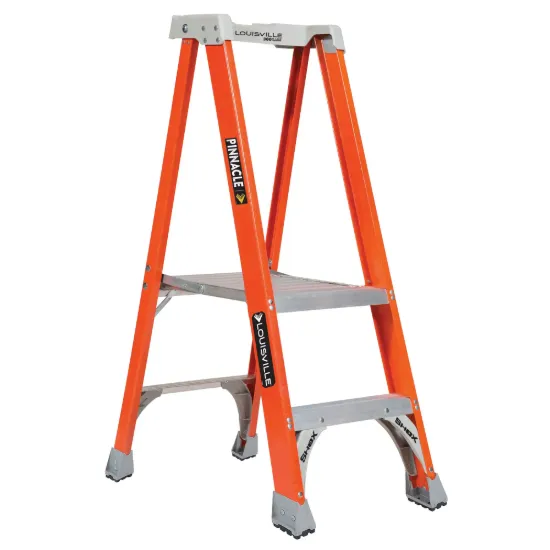

2-FOOT FIBERGLASS PINNACLE PLATFORM STEP LADDER

FXP1702

Material Fiberglass
Size 2 ft
Max Reach* 8' 6"
Around electricity Safe
Load Capacity 300 lbs

This Louisville 2 foot PRO Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features an extended handrail and a 30% larger platform area for added comfort and safety.

SERIES FXP1700XL Duty Rating: Type IA

This Louisville 2 foot Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features an extended handrail and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop™ with multiple tool slots and magnet, SHOX™impact absorption system, Raptor Boot™ with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1702 PRO Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

  • Practical Design Keep your tools close and your hands free with the ProTop™
  • Work Comfortably On the 30% larger platform
  • Increased Efficiency Work facing multiple directions
  • Tool Belt Height Handrail 30 inches tall putting every tool within reach
  • Durability SHOX™ - advanced impact absorption protects fiberglass rails against damage
  • Enhanced Longevity With the heavy duty RaptorBoot™ protecting the fiberglass from wear and tear
  • Stability Wide back braces provide ridged support
  • Reinforced Step Construction Double rivet design adds long-lasting durability to steps
Where to Buy
Other Sizes 3 ft 4 ft 6 ft 8 ft 10 ft 12 ft 2 ft

Top Width Closed (in)18 1/2
Open Volume (cu. ft.)6.6
Number of Steps2
Maximum Standing Height (in)1’ 11”
Open Volume (cu. m.)0.6
OSHACertified
Rung TypeStandard Step
Open Width (in)21.25
Size2
Open Height (in)53.25
Closed Height54
Weight19
CertifiedANSI
Load Capacity300
Closed Depth10
Closed Width (in)21
Open Depth (in)32 1/8
Duty RatingType IA
Closed Volume (cu. ft.)7.0587
StylePinnacle Pro Platform
Step Depth3
MaterialFiberglass
Max Reach8' 6"
Safe Around ElectricityYes
