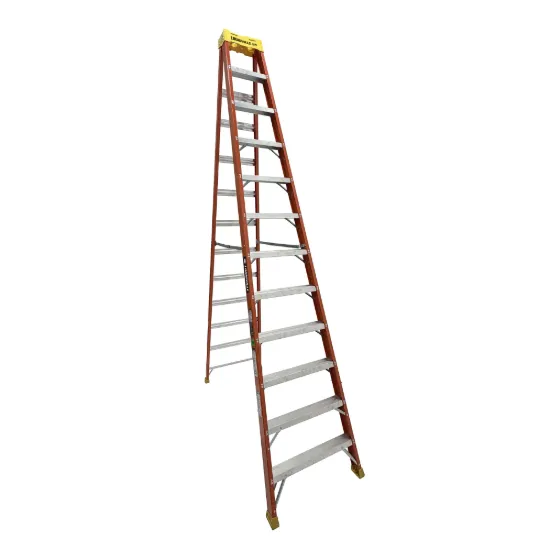

12-FOOT FIBERGLASS STEP LADDER

L-3016-12

Material Fiberglass

Size 12 ft

Max Reach* 16' 1"

Around electricity Safe

Load Capacity 300 lbs

This Louisville 12 foot non-conductive fiberglass step ladder has a load capacity of 300lbs, rated ANSI Type IA.

SERIES L-3016-00 Duty Rating: Type IA

This Louisville 12 foot non-conductive fiberglass step ladder has a load capacity of 300lbs, rated ANSI Type IA. This ladder is equipped with a molded top with handyman’s tool slots, heavy-duty gusset bracing, slip-resistant boot, inside spreader braces, wide back braces, and double-rivet step construction. The Louisville L-3016-12 step ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Practical Design Keep your tools close and your hands free with the RaptorTop™
Solid Grip Feet Provide slip-resistant stability and floor protection
Built in Protection Internal spreader braces help prevent damage during transport
Wide back braces provide additional support and a more secure climbing experience.
Built to Last Gussets protect steps from everyday wear and tear

Other Sizes 20 ft 24 ft 28 ft 32 ft 4 ft 6 ft 8 ft 10 ft

Top Width Closed (in)	13.23
Open Volume (cu. ft.)	10.96
Number of Steps	11
Maximum Standing Height (in)	114
Open Volume (cu. m.)	5.38
OSHA	Certified
Rung Type	Standard Step
Open Width (in)	31.5
Size	12
Open Height (in)	136.8
Closed Height	145.4
Weight	48
Maximum Reach (in)	193
Certified	ANSI
Load Capacity	300
Closed Depth	6
Closed Width (in)	31.5
Open Depth (in)	76.14
Duty Rating	Type IA
Closed Volume (cu. ft.)	15.441
Style	Standard
Step Depth	3
Material	Fiberglass
Max Reach	16' 1"
Safe Around Electricity	Yes
Atributos de producto
Product	Step Ladders
