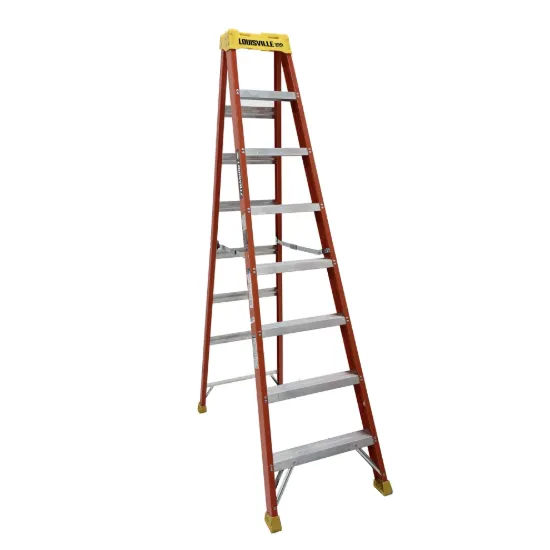

8-FOOT FIBERGLASS STEP LADDER

L-3016-08

Material Fiberglass

Size 8 ft

Max Reach* 12' 3"

Around electricity Safe

Load Capacity 300 lbs

This Louisville 8 foot non-conductive fiberglass step ladder has a load capacity of 300lbs, rated ANSI Type IA.

SERIES L-3016-00 Duty Rating: Type IA

This Louisville 8 foot non-conductive fiberglass step ladder has a load capacity of 300lbs, rated ANSI Type IA. This ladder is equipped with a molded top with handyman’s tool slots, heavy-duty gusset bracing, slip-resistant boot, inside spreader braces, wide back braces, and double-rivet step construction. The Louisville L-3016-08 step ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

Practical Design Keep your tools close and your hands free with the RaptorTop™
Solid Grip Feet Provide slip-resistant stability and floor protection
Built in Protection Internal spreader braces help prevent damage during transport
Wide back braces provide additional support and a more secure climbing experience.
Built to Last Gussets protect steps from everyday wear and tear

Other Sizes 20 ft 24 ft 28 ft 32 ft 4 ft 6 ft 10 ft 12 ft

Top Width Closed (in)	13.23
Open Volume (cu. ft.)	6.36
Number of Steps	7
Maximum Standing Height (in)	68
Open Volume (cu. m.)	2
OSHA	Certified
Rung Type	Standard Step
Open Width (in)	25.5
Size	8
Open Height (in)	91.14
Closed Height	97.4
Weight	26
Maximum Reach (in)	147
Certified	ANSI
Load Capacity	300
Closed Depth	6
Closed Width (in)	25.5
Open Depth (in)	52.42
Duty Rating	Type IA
Closed Volume (cu. ft.)	8.374
Style	Standard
Step Depth	3
Material	Fiberglass
Max Reach	12' 3"
Safe Around Electricity	Yes
Atributos de producto
Product	Step Ladders
