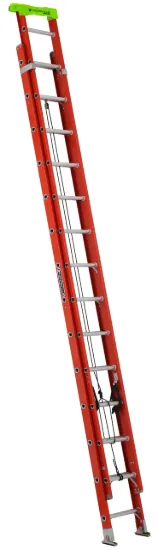

28-FOOT FIBERGLASS EXTENSION LADDER

L-3022-28PT

Material Fiberglass
Size 28 ft
Max Reach* 27' 7"
Around electricity Safe
Load Capacity 300 lbs

This Louisville 28 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA.

SERIES L-3022-PT Duty Rating: Type IA

This Louisville 28 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes our patented ProTop specially designed to increase productivity. This innovative ProTop features a corner grip, pole grip, integrated bumper, and work tray; all compact and accessible in a spacious design. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, QuickLatch rung lock for better secure operation, rope and pulley, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville L-3022-28PT fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

*Max Reach assumes 5’ 7” person with 12” vertical reach.

FEATURES

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • ProTop With Multiple Tool Slots And Magnet
  • V-Shape ProTop Allows The Ladder To Lean Against Walls
  • Buildings And Poles
  • Patented Quicklatch Runglock System
  • Steel Swivel Safety Shoe With Metal Shield
  • Mar-Resistant Rail End Caps
  • Outside Slide Guides
Where to Buy
Other Sizes 20 ft 24 ft 32 ft 4 ft 6 ft 8 ft 10 ft 12 ft

Number of Steps28
Outside Width Fly (in)16.088
Maximum Standing Height (in)25’
Inside Width Fly (in)13.688
ANSICertified
Rung TypeD-rung
Size28
Outside Width Base (in)17.045
Total Length (ft)28
Closed Height174
Weight60
CertifiedOSHA
Load Capacity300
Closed Depth6.375
Closed Width (in)17.812
Rail Depth (in)3.25
Duty RatingType IA
Inside Width Base (in)14.645
Section Length (ft)14
Closed Volume (cu. ft.)11.434
StyleStandard
Max. Extended Length (ft)25
Step Depth1.5
MaterialFiberglass
Max Reach27' 7"
Safe Around ElectricityYes
